Essential Details

Radiation Protection Supplies And Accessories

The external frame used to support a work tent is an integral part of the tent design. Spacing and location of frame pieces must be planned in a way to ensure a solid tent structure while avoiding interference with tent access or service features.

Lancs uses 1 inch Schedule 40 galvanized steel pipe to fabricate tent frame pieces. Frame members are joined with fittings made of ASTM A47 Grade 32510 heavy duty cast iron. Pipe and fittings are custom made to accommodate any necessary shape and angle.

Tie-offs are heat sealed to the exterior of tent walls at points running along frame positions. Nylon tie wraps are commonly used to fasten a tent to its frame.

LI-401 – LI-404 Tent Frames

nuclear-plant-placeholder

Description

  • LI-401: Frame for LI-360-A
  • LI-402: Frame for LI-361B
  • LI-403: Frame for LI-362
  • LI-404: Frame for LI-363

LI-410 Glove Ring

Description

  • Rigid plastic with rubber retention ring
  • Available in yellow, magenta, or black color
  • Used to secure Anti-C gloves to containment sleeves
  • LI-410-4 4-1/2" ID
  • LI-410-5 5-1/2" ID
2_LancsProduct_SUPP_LI-410-glovering

LI-411 Glove Clamp

3_LancsProduct_SUPP_LI-411-Glove-Clamp

Description

  • Stainless steel band with worm screw
  • Used to secure Anti-C gloves to glove rings

LI-412 Anti-C Gloves

Description

  • Available in sizes 9, 10, or 11 with cuff length 12", 15",or 18"
  • Used for anti-C wear or containments
  • Latex, launderable and incinerable
4_LancsProduct_SUPP_-LI-412-Anti-C-Gloves

LI-412-GN

5_LancsProduct_SUPP_LI-412-GN

Description

  • High performance Green Nitrile glove that provides outstanding strength, chemical resistance, and high flexibility
  • Unlined Glove

LI-412-MITT

Description

  • PVC Mitt. Used as an alternative to glove sleeves with attached Anti-C gloves over glove rings.
  • Used on glovebags, small containments, transfer sleeves, bag-in/out bags, and drum bags
  • Sizes include: Large – 11″W x 27″L, Medium – 10″W x 26″L, Small – 10″W x 19″L
  • Made from PVC or Polyurethane.
6_LancsProduct_SUPP_-LI-412-MITT

LI-414 HEPA Filter, 30-40 CFM

9_LancsProduct_SUPP_-LI-414-HEPA-Filter

Description

  • Rigid PVC housing with galvanized wire mesh caps on both ends
  • Air Flow: Rated from 30 CFM to 40 CFM
  • Dimensions:
    6-1/2" dia
    8" long
  • Filter Media:
    99.97% efficiency @ 0.30 microns
    Each unit individually DOP tested

LI-415 Filter Assembly

Description

  • 2 CFM filter (LI-416) with 2 rubber washers, 1 rigid disk washer, and threaded retainer plug
  • Used to vent glovebags and small containments
10_LancsProduct_SUPP_-LI-415-Filter-Assembly

LI-415-P

11_LancsProduct_SUPP_LI-415-P

Description

  • 2 CFM Pancake filter assembly
  • Includes 1 ea Pancake filter cartridge, 1 ea threaded retainer plug, 2 ea rubber washers, and 1 ea rigid dish washer
  • Used to vent glovebags and small containments

LI-416 HEPA Filter, 2 CFM

Description

  • Plastic housing with 3/4" NPT
12_LancsProduct_SUPP_LI-416-HEPA-Filter

LI-416-P

13_LancsProduct_SUPP_LI-416-P

Description

  • 2 CFM Pancake filter
  • Cartridge only. 3/4″ NPT

LI-418 Poly Bottle Adaptor

Description

  • Threaded for 3/4" NPT attachment
14_LancsProduct_SUPP_LI-418-Poly-Bottle-Adaptor

LI-419 Poly Bottle Adaptor

15_LancsProduct_SUPP_-LI-419-Poly-Bottle-Adaptor

Description

  • Threaded for 1-13/64" male attachment

LI-420 Poly Bottle Adaptor

Description

  • Threaded for 1-13/64" female attachment
16_LancsProduct_SUPP_LI-420-Poly-Bottle-Adaptor

LI-421 Drain Fitting

17_LancsProduct_SUPP_-LI-421-Drain-Fitting

Description

  • Screen filter fitting with 2 rubber washers
  • 1 flexible disk washer and threaded retainer nut
  • Used to drain glovebags and small containments
  • Our drain fittings come in 5 sizes:
    • 1/2”
    • 3/4”
    • 1”
    • 1-1/2”
    • 2” (with no screen)

LI-422 Thru-Wall Connector

Description

  • Plastic fixed flange fitting with 2 rubber washers
  • 1 rigid disk washer and threaded retainer nut
  • Used to penetrate walls of glovebags and containments
  • For 1/2" ID hoses
18_LancsProduct_SUPP_LI-422-Thru-Wall-Connector

LI-423 Pinch Clamp

19_LancsProduct_SUPP_LI-423-Pinch-Clamp

Description

  • Metal bracket with clamp plate tightened by threaded thumb screw
  • Used to stop/start flow in plastic tubing (3/4" OD max)

LI-424 Hand Pump

Description

  • Plastic body, self priming 9" long x 1-1/4" dia
  • Intake and outlet sized for 1/2" ID tubing
  • Used to transfer fluid to/from Poly Bottles
  • High density Polyethylene
  • DOT certified
  • 2" screw cap closure with 3/4" center
20_LancsProduct_SUPP_LI-424-Hand-Pump

LI-425 5 Gallon Poly Bottle

21_LancsProduct_SUPP_LI-425-5-Gallon-Poly-Bottle

Description

  • 14-5/8"L x 9-5/8"H x 11-5/8"W
  • Single opening

LI-426 15 Gallon Poly Bottle

Description

  • 26-1/2"L x 14-1/8"H x 14-1/8"W
  • Double opening
22_LancsProduct_SUPP_-LI-426-15-Gallon-Poly-Bottle

LI-427 Drain Assembly

23_LancsProduct_SUPP_LI-427-Drain-Assembly

Description

  • Drain Fitting (LI-421) with 3′ length of 1/2" ID tubing and Pinch Clamp (LI-423)

LI-428 Vent Assembly

Description

  • 2 CFM Filter (LI-416) attached to Poly Bottle Adaptor (LI-418)
24_LancsProduct_SUPP_-LI-428-Vent-Assembly

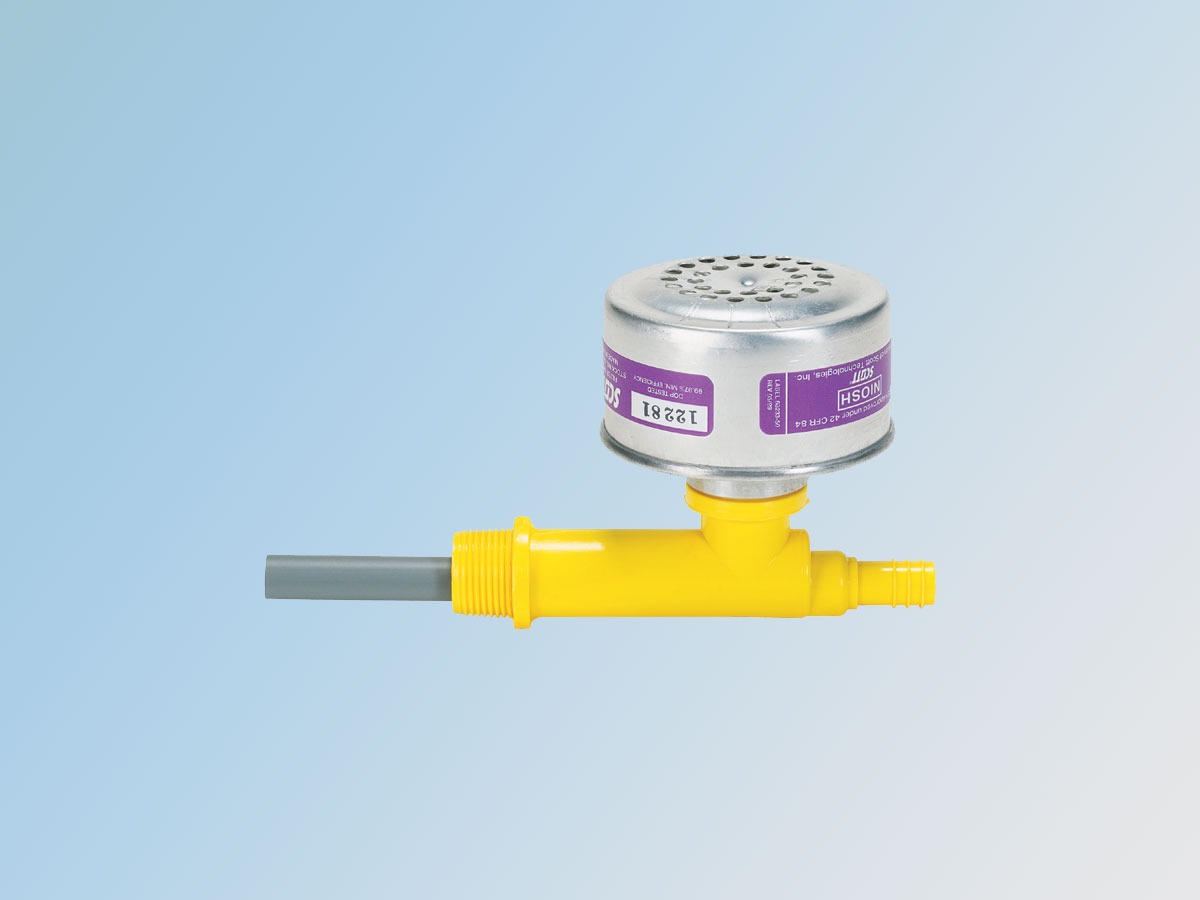

LI-429 Vent Assembly

25_LancsProduct_SUPP_LI-429-Vent-Assembly

Description

  • 3 CFM Filter (LI-416) attached to Poly Bottle Adaptor (LI-419)

LI-430 Transfer Cylinder Assembly

Description

  • 6" dia x 6" long rigid PVC cylinder (as separate item: LI-431 Transfer Cylinder)
  • 8" dia sleeving, 10′ long, 8 mil translucent yellow PVC (as separate item: LI-432 Transfer Sleeving)
  • Used for passing items out of/into secured containments through access port
what-is-nuclear-power

LI-433 Transfer Cylinder For Single Chamber Work Containments

26_LancsProduct_SUPP_LI-433

Description

  • 18" dia aluminum cylinder Fittings sized to attach to frame of "Doghouse" work chamber LI-301F
  • Used with 20" dia sleeving for passing items out of/into LI-301 glovebag

LI-434

Description

  • 12″ dia x 4″ deep Bag-out ring/cylinder with securing u-bolt
  • Cylinder made from schedule 80 PVC pipe. U-bolt made from 5/16″ dia steel
  • U-bolt intended to to secure to structural frame of glovebag or tent
27_LancsProduct_SUPP_-LI-434

LI-450 Tie-off, Large

28_LancsProduct_SUPP_-LI-450-Tie-off

Description

  • 2" dia disk with heavy duty injection molded PVC eyelet
  • Used on tent and containments walls as support point.
  • For heavier uses.

LI-451 Tie-off, Small

Description

  • 1" dia disk with light duty injection molded PVC eyelet
  • Used on glovebags as support point. For lighter uses.
  • Also available in polyurethane
29_LancsProduct_SUPP_LI-451small

LI-452 Vinyl Cement

30_LancsProduct_SUPP_-LI-452-Vinyl-Cement

Description

  • Quart can with brush applicator in cap
  • Glue for plastic sheet and vinyl laminated material
  • Used for patching sleeves, containments, and tents
  • LI-452: HH-66, vinyl cement, 1 quart can
  • LI-452-P: HH-66, vinyl cement, 1 pint can
  • LI-452-8oz: HH-66, vinyl cement, 8 oz can
  • LI-452-4oz: HH-66, vinyl cement, 4 oz can

Supplies For Your Safe Work Environment

We help you determine the right tools for the job. If we don’t already have it, we can make it based on your custom specifications.
